Dual Head LED Surgical Light Operating Lamp Touchscreen Control & Shadowless Technology
LED Surgical Light Advantages
1. Maximum Coverage and Flexibility (Dual Head)
The Dual Head configuration provides two independent light domes, ensuring comprehensive and consistent illumination of the surgical field from multiple angles. This is essential for complex procedures and eliminates the need for manual repositioning during long surgeries.
2. Superior Clinical Performance (Shadowless Technology)
The advanced optics and multi-lens design create true Shadowless Technology. This ensures that the surgeon's head, hands, or instruments do not cast shadows, allowing for unparalleled visibility deep within the surgical cavity—a critical factor for surgical precision and patient safety.
3. Modern, Intuitive Control (Touchscreen)
The Touchscreen Control panel offers a simple, digital interface for instant adjustment of illumination intensity, color temperature, and mode selection. This allows the surgical team to quickly and precisely tailor the light settings without interrupting the sterile field or procedure.
4. Efficient, High-Quality Light Source (LED)
The use of LED technology guarantees high-intensity, cool light with exceptional color rendering (CRI). This provides natural, accurate tissue color representation for reliable diagnosis and reduces heat emission, keeping the surgical team and the patient comfortable.
LED Surgical Light Parameter
| Illuminance | ≥16,000Lux/≥140,000Lux |
| Color temperature: | 3500±300K,4000±300K, 4500±300K,5000±300K |
| Color reduction index(Ra) | 96 ,R9 97, R13.98 |
| Illuminance depth | ≥1300mm |
| Total irradiance | 380W/m² ,380W/m² |
| Size of light field | 125～250mm |
| Service life of illuminant | 50,000h |
| Power supply voltage | AC110-240v,50/60Hz |
| Brightness adjustment | Automatic8-stage continuous light adjustment |
| Lowest height of installation | 2900mm |
| Total power consumption | 90W |
| Total LED bulb quantity | 187 pcs |
| Green ENDO | Yes |
| Dimming type | Analog dimming |
LED Surgical Light Description
- LED series shadowless Operating lamp can widely be used in diversified operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.
- The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm ;by using color temperature compensation technology, the color reversion is uprised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.
- The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable,Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360 universal design can satisfy various needed height and angle in the operation.
- Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
LED Surgical Light Application:
Surgical lights are used in operating rooms and examination rooms to provide bright, clear, and shadow-free illumination of a patient's body during a medical procedure.
|
|

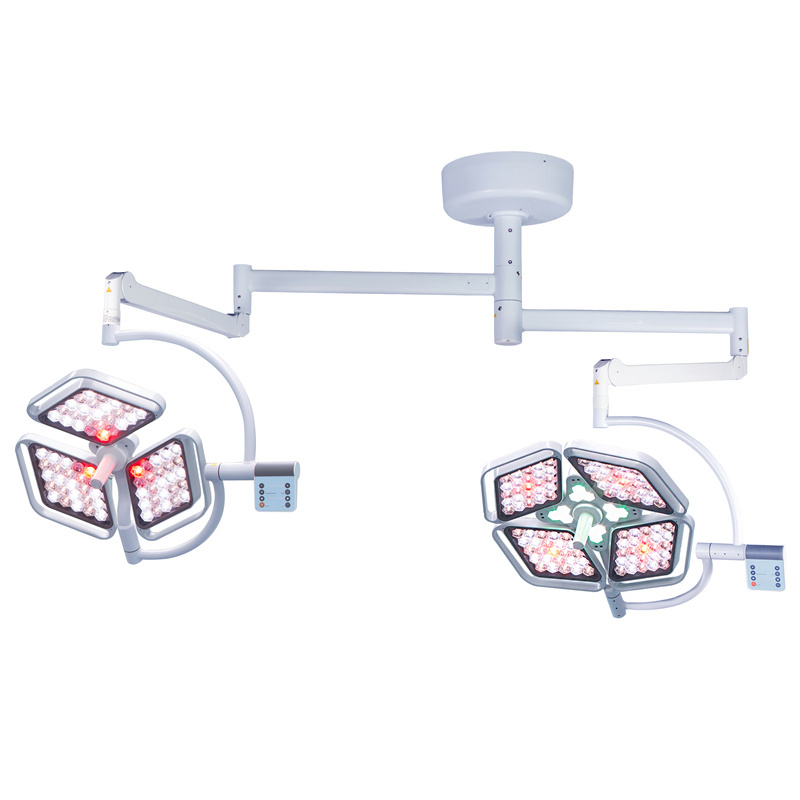

Dual Head LED Surgical Light Operating Lamp Touchscreen Control & Shadowless Technology Images
|
